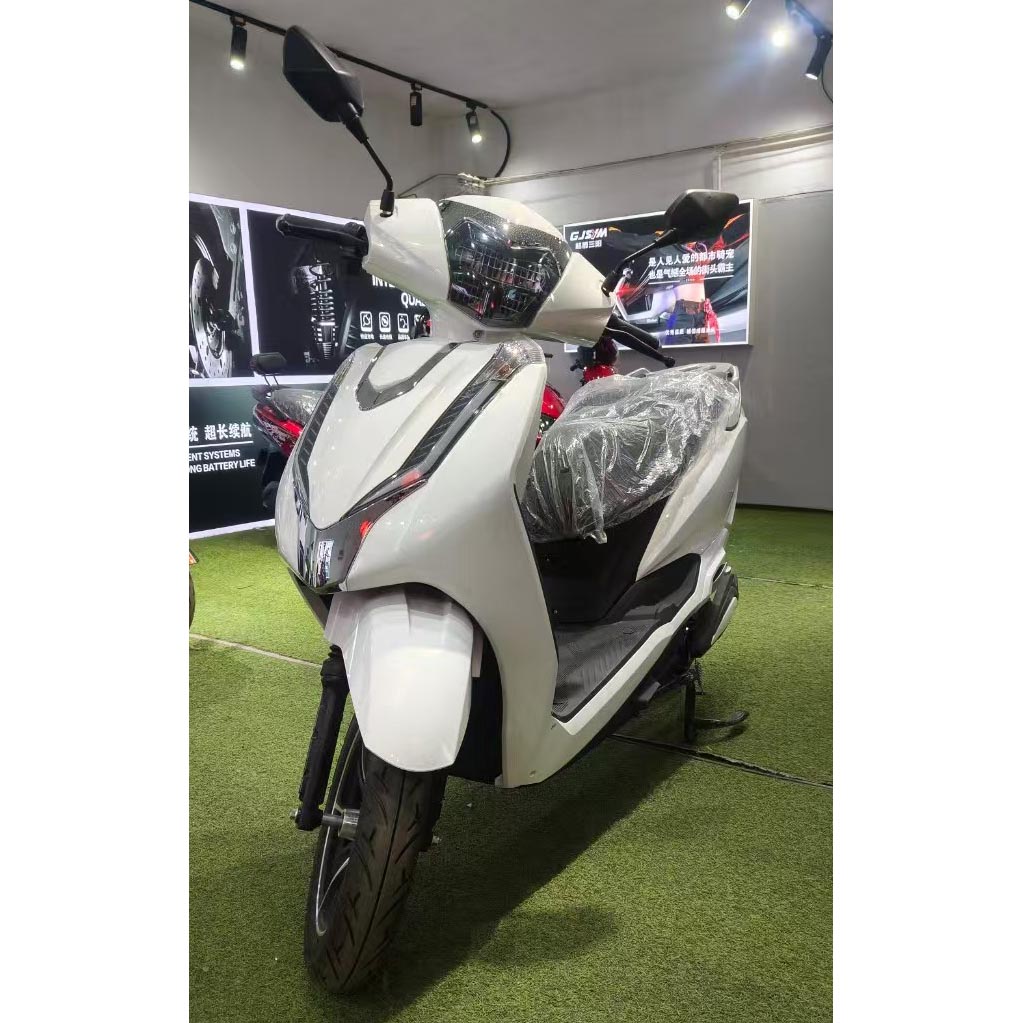

Model no.: KTS-1
• Dimensions (mm)L×W×H: 2000×725×1180
• Wheelbase: 1445
• Motor: Permanent magnet brushless DC (10ZW7270324YA), 72V DC, 3-phase
• Continuous Power: 3.0kW@720min⁻¹; Peak Power: 3.2kW@770min⁻¹
• Continuous Torque: 39.9N·m@720min⁻¹
• Controller: ZWK048032A (Wuxi Ounai)
• Battery: Lithium (EMA72V50A), 72V/50Ah, 23 cells
• Charger: On-board (84V8A, Tianchang Wanteng)
• Max Speed: 70km/h
• Energy Consumption: 37Wh/km
•Electric Range: 131km
• Emission Standard: Euro 5+
• Design Endurance: ≥30,000km within 5 years
• Tyres: F/R 90/90-12 54J, 250kPa; Rims F:2.15X12/R:12x2.5
• Braking: F/R disc brakes (CBS), asbestos-free brake pads
